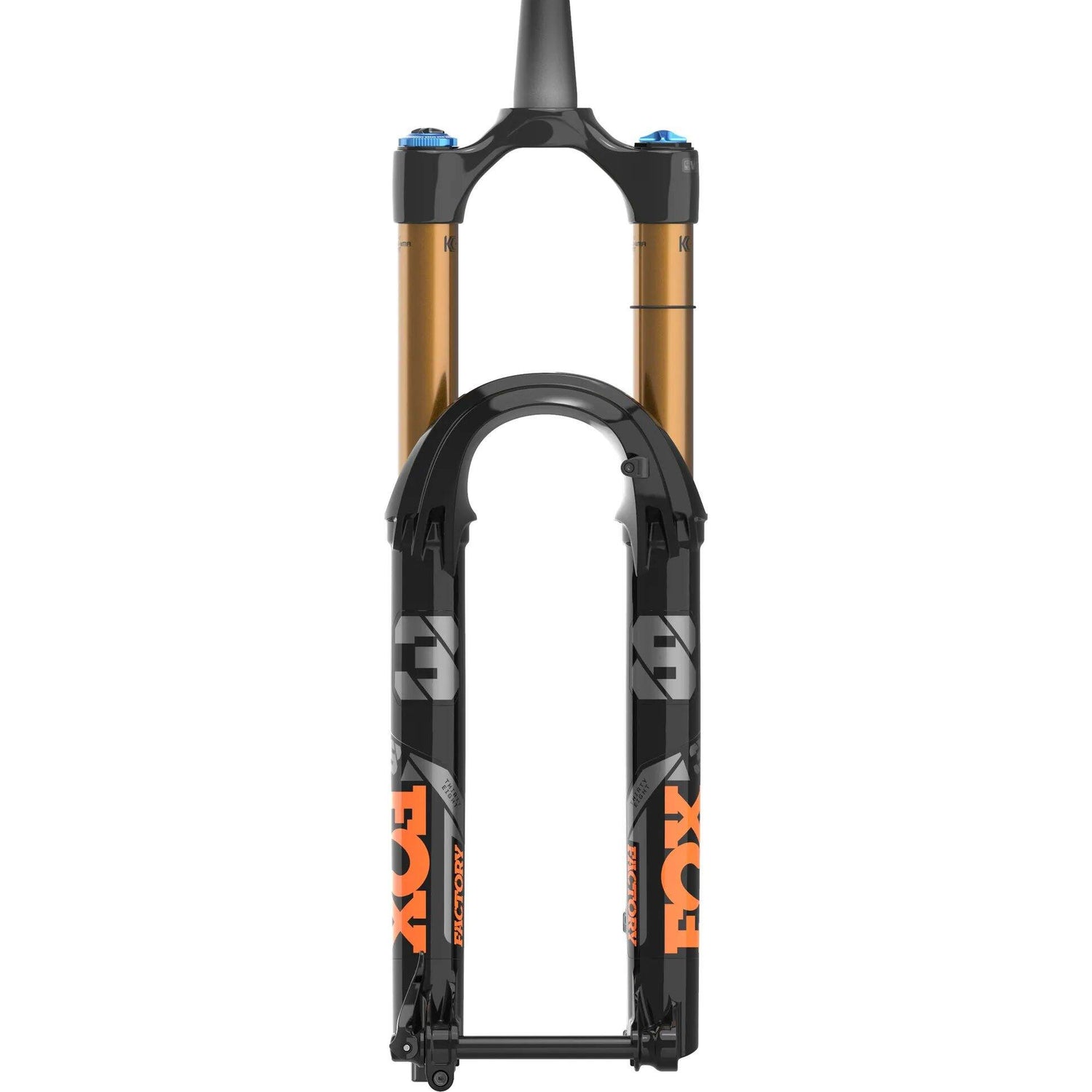

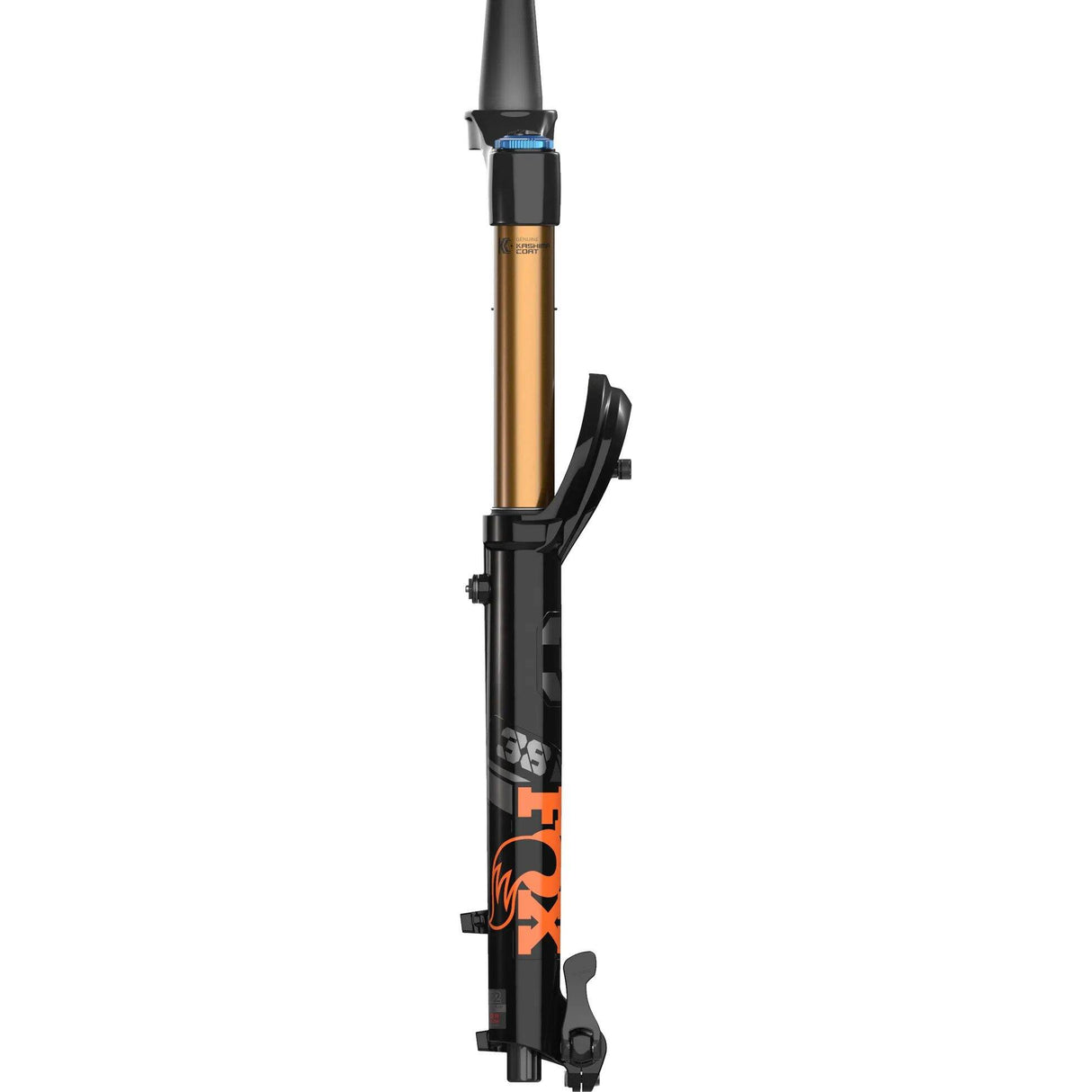

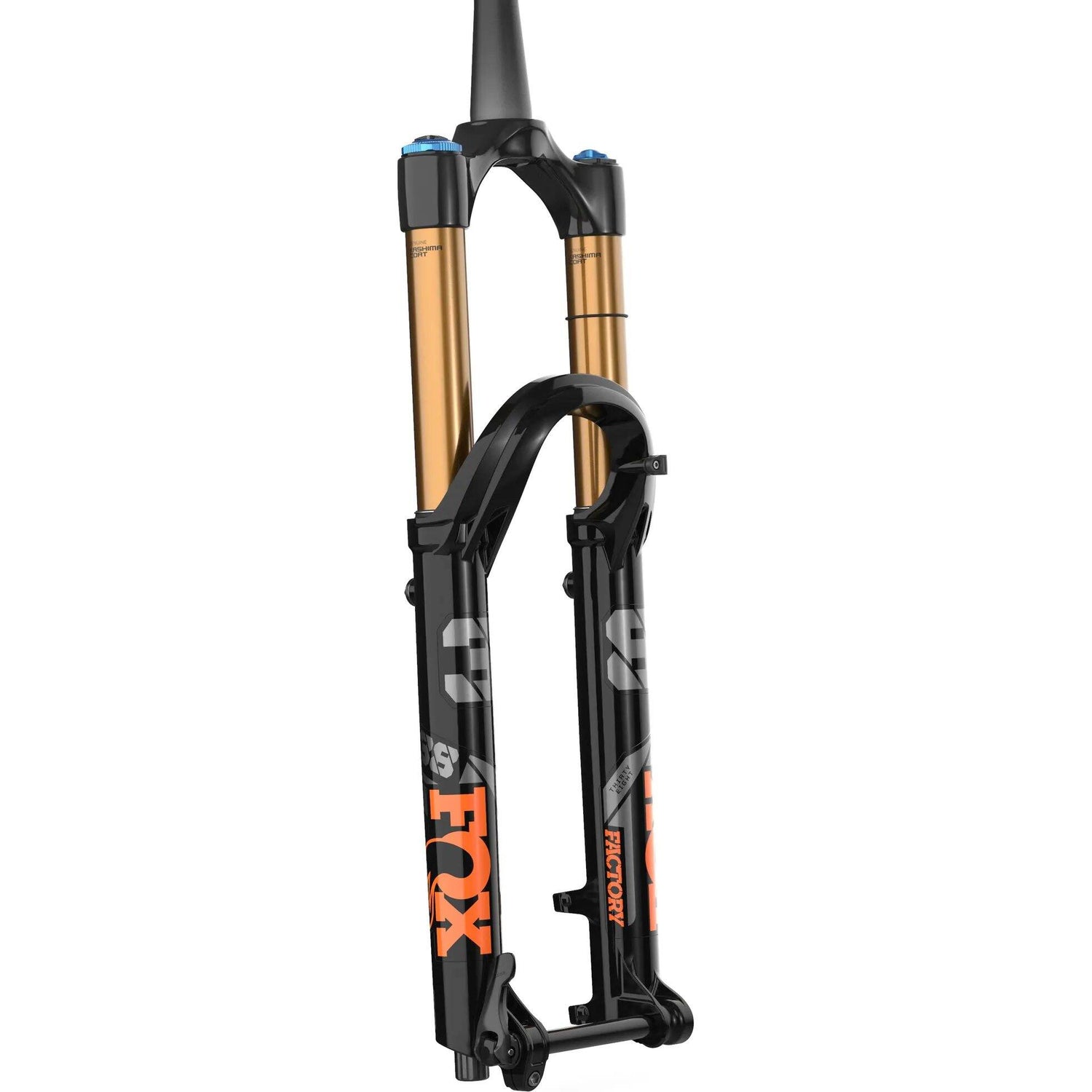

Fox 38 Float Fact Grip 2 Tapered Forks - Orange 27.5 Wheel/170mm Travel/15QR110 Axle/44mm Offset

Fox 38 Float Fact Grip 2 Tapered Forks

Features:

  • All-NEW for 38, steerer tube design incorporates elliptical shaping in taper zone, further maximizing stiffness to weight ratio

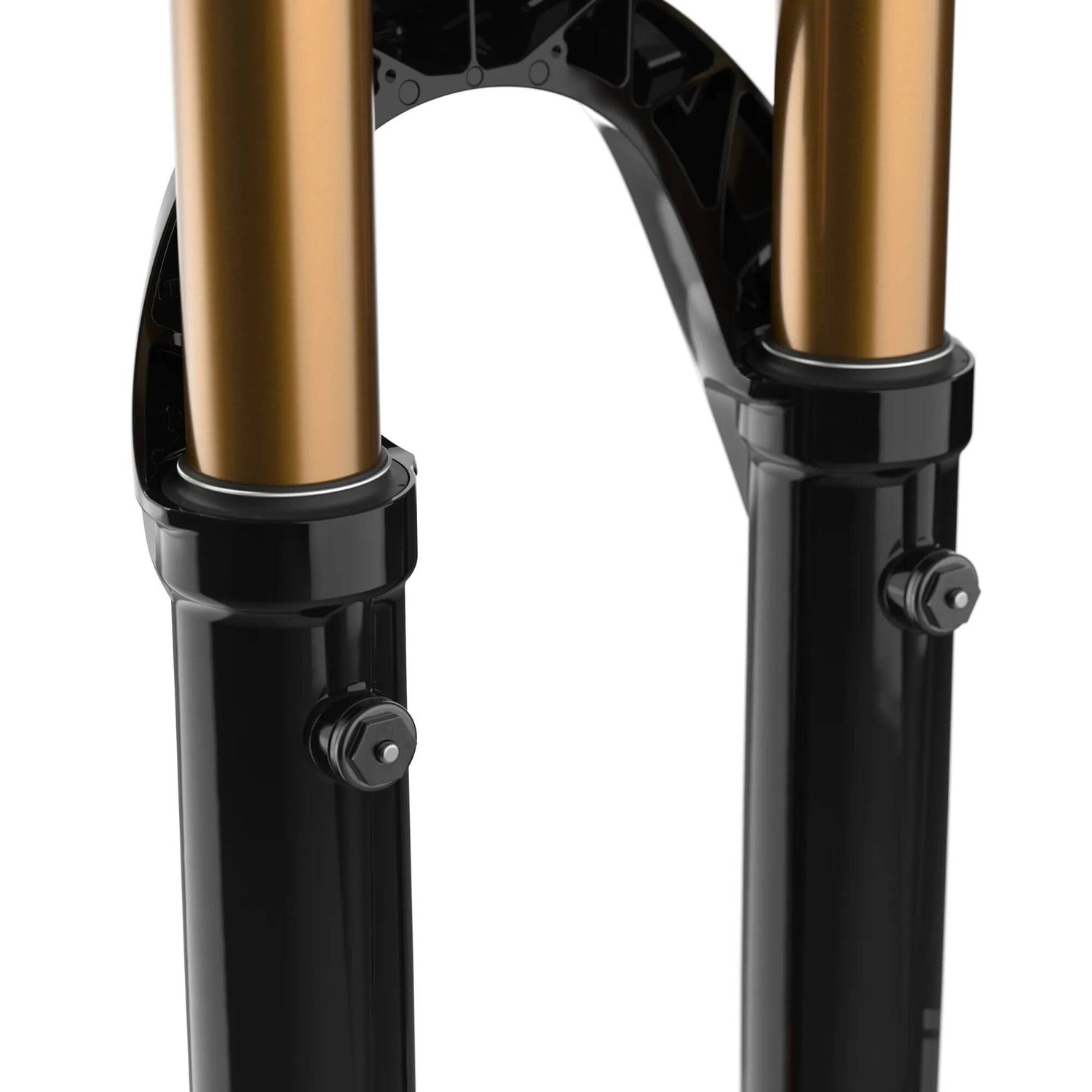

  • NEW lower leg bleeders
  • NEW air/oil channels

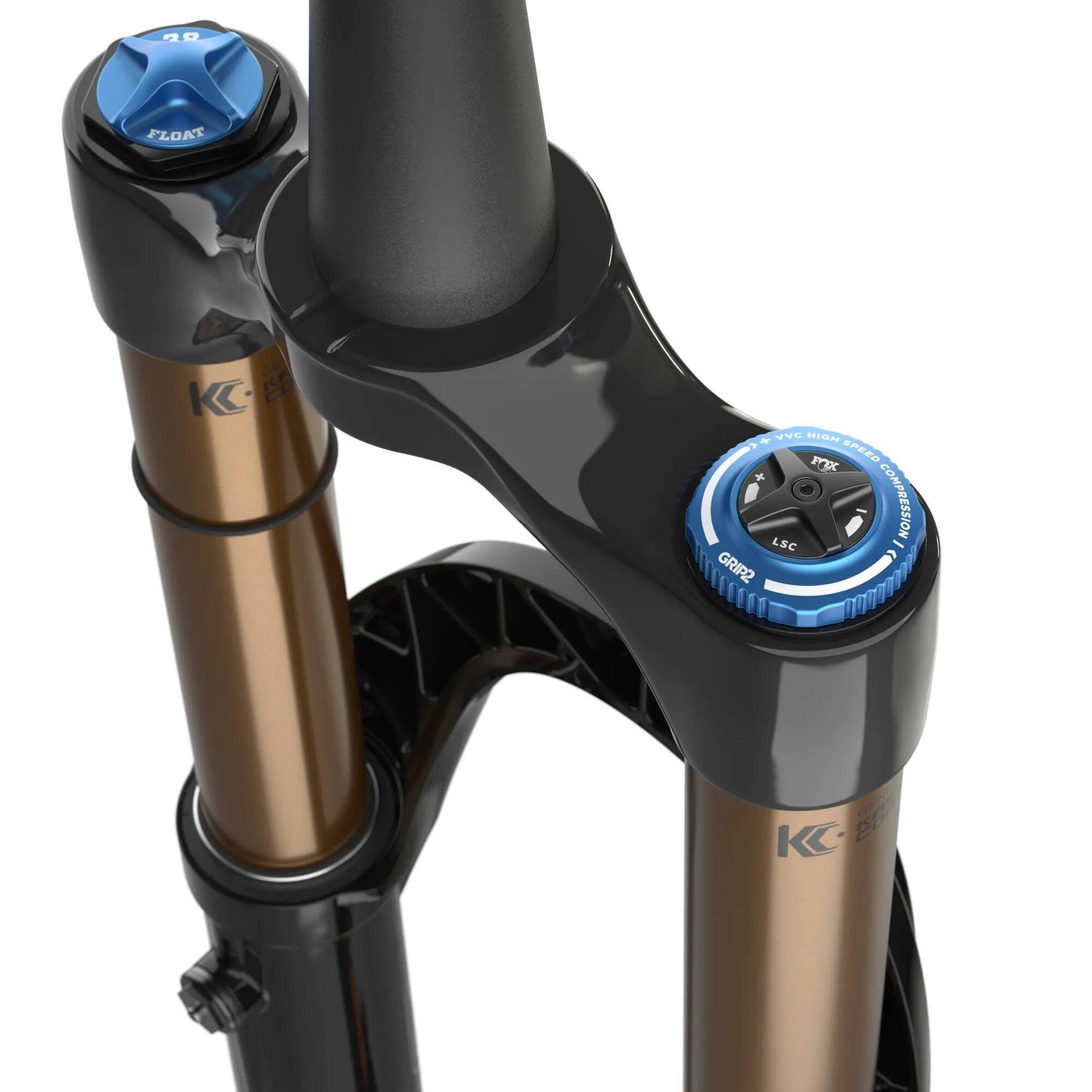

  • Updated GRIP2 damper now with dual VVC (Variable Valve Control) on HSC and HSR circuits
  • Matching 8-click HSC and HSR adjustment on Grip2 forks and X2 shocks
  • Unique design maximizes stiffness to weight and offers improved head tube clearance via radical NEW arch shape
  • 31% stiffer transverse shear, 9% stiffer fore/aft and 20% torsionally stiffer than 36.
  • Updated EVOL air spring
  • 58mm crown diameter to match modern frame shape profiles
  • Optional mudguard with sturdy and seamless 4-point direct-mount attachment protects upper tubes and dust wipers from dirt and debris
  • Damper: GRIP2 damper now with dual VVC (Variable Valve Control)
  • Travel: 160 - 180mm
  • Offset Options:
    37mm
    44mm
  • Wheel Size: 27.5"
  • Axle: 15QR x 110mm Boost
  • Steerer: 1.5 Tapered
All the revolutionary features of the brand-new 36 packaged in a super-stout chassis engineered specifically for modern hard-hitting, long travel enduro-style riding. The all-new 38 is hungry to devour all you can throw at it and ask for more.

One fork family bound by a common bond of race-ready performance, driven to help you deliver your very best. In 2005, we changed the game with the introduction of the 36, pioneering a new category in mountain bike suspension - and Enduro was born. The very same year, we introduced a big brother into the fold with the 40, forever changing the landscape of downhill racing - defying both gravity and expectations of what dual crown suspension should be. 15 years and countless world cup and EWS wins later, our award-winning suspension family is poised to redefine the game once again with the brand new 38. This rebellious middle child is a hard-hitting, long travel enduro menace, set to carry on the evolution and winning traditions of its champion pedigree.

EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

The benefits of EVOL are further enhanced by our new Lower Leg channels and Bleeders, which both function to reduce air pressure captured in the lower legs, allowing the EVOL air spring to operate freely without unintended interference.

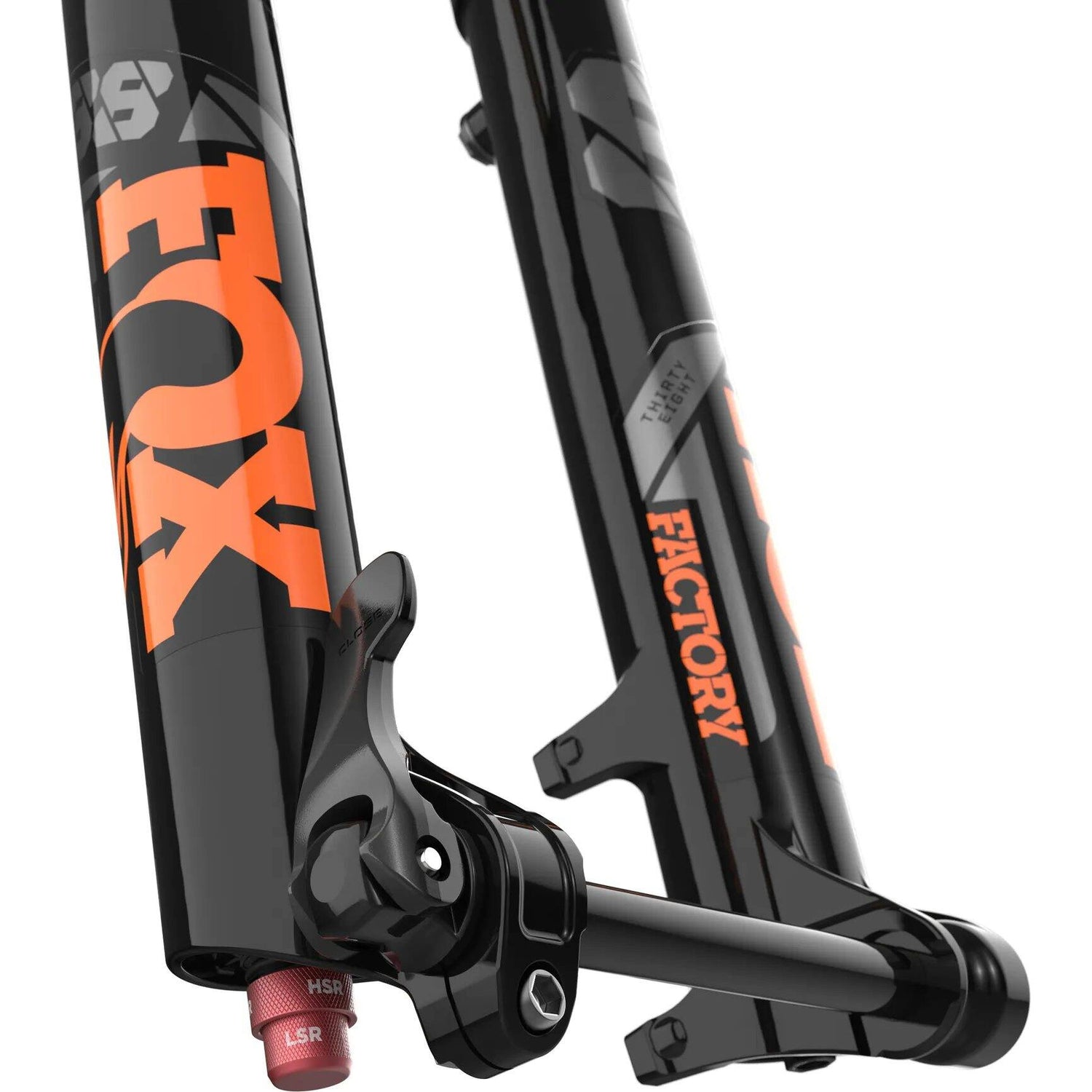

Floating axles might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality.

The all-new 36 and 38 come equipped with a new quick-release lever operated patent-pending floating axle system, combining the benefit of a floating axle with the ease of a tool-free quick-release. With this system, spacing is locked in via a floating sleeve, allowing repeated front wheel removal and reinstallation while maintaining perfect fork alignment. Floating sleeve positioning comes preset from the factory so if you are unsure of how to operate the floating axle system or simply don’t want to bother with it, you can just install the front wheel and get on with your ride.
