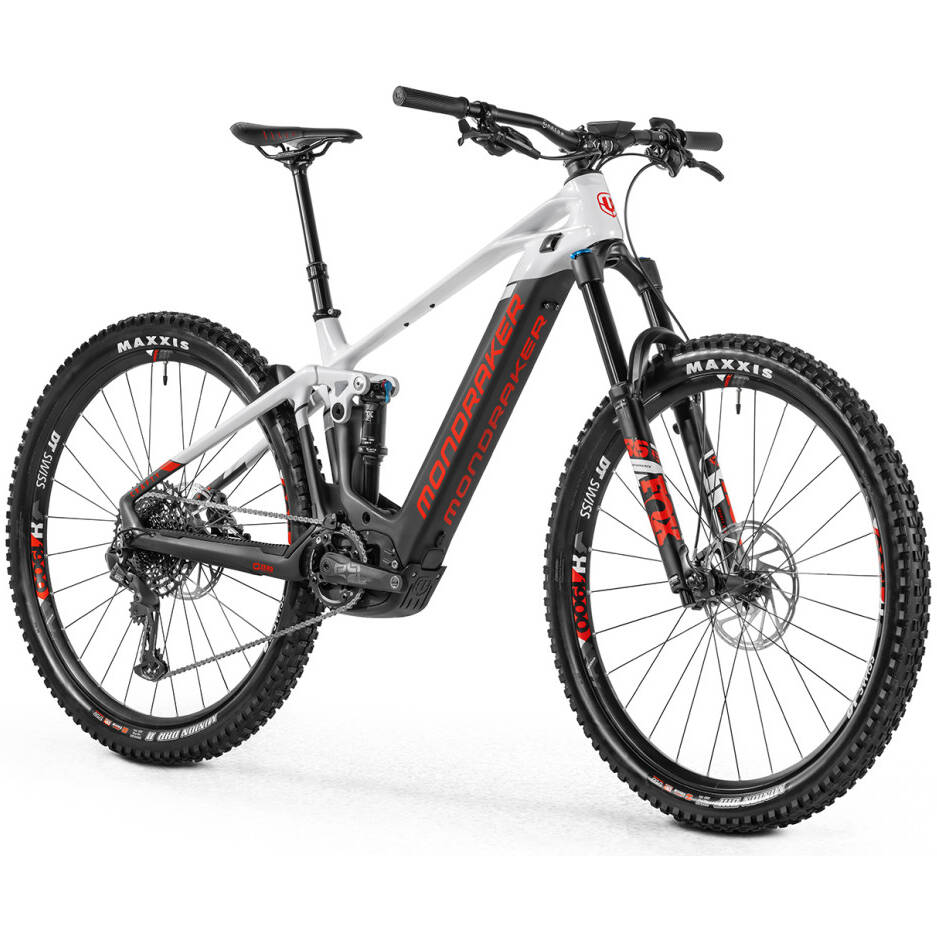

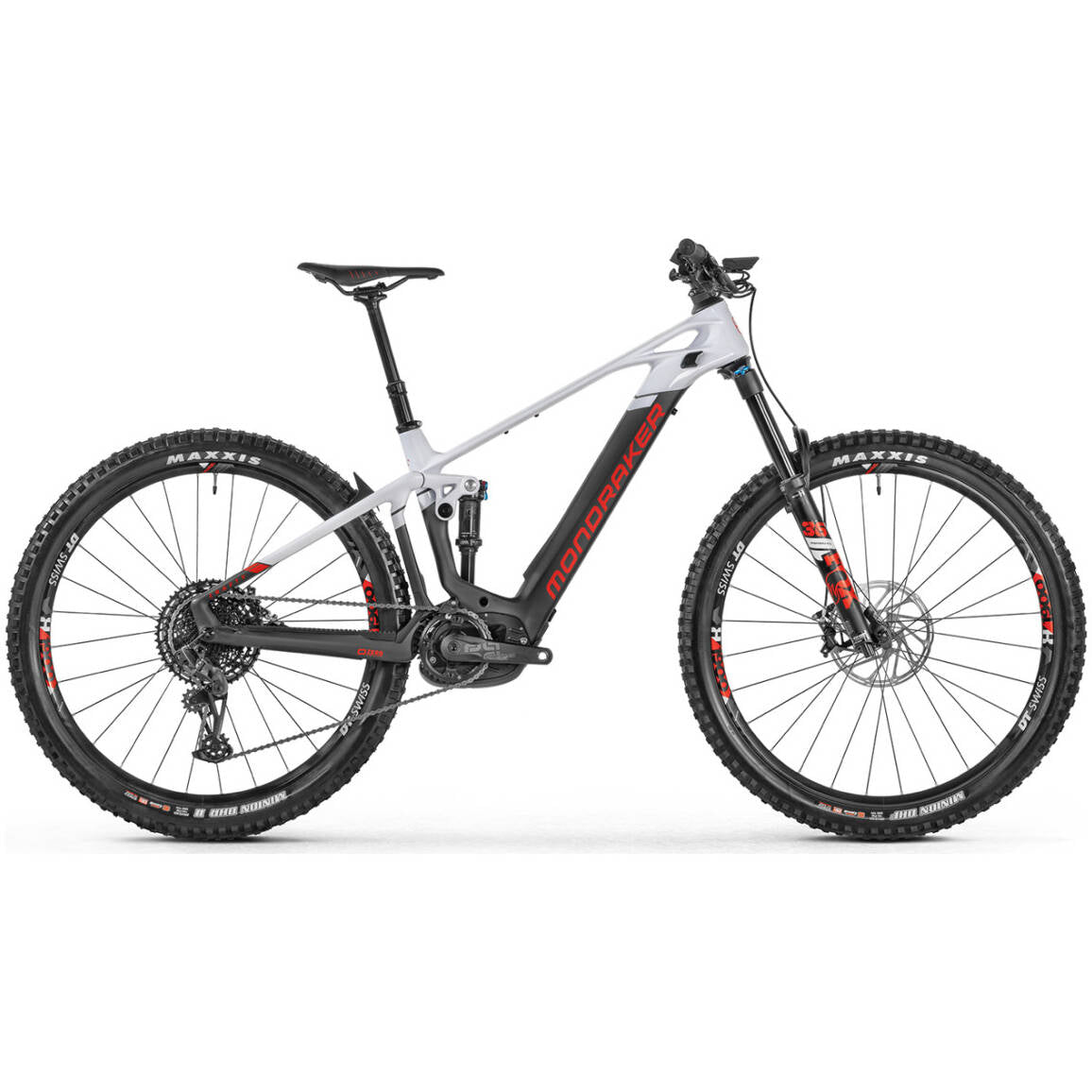

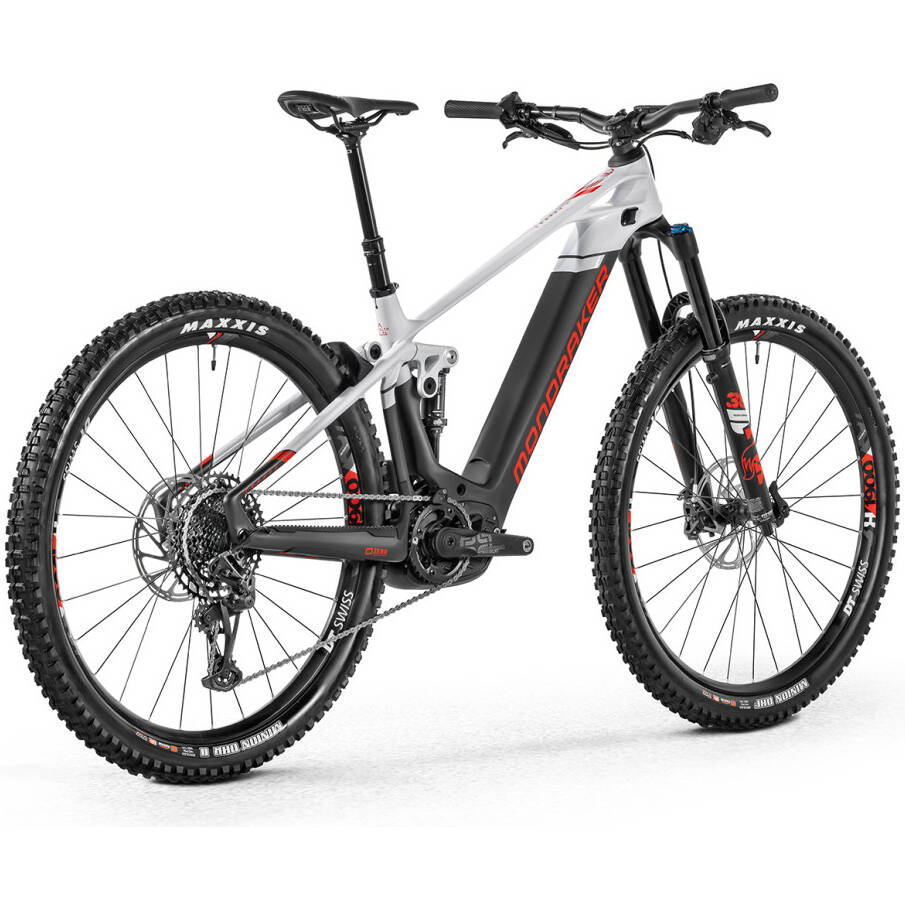

Mondraker e-MTB Enduro Crafty R 29'' 2021 Electric Bike
Features:
- Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
- Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock: Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
- Shock settings: Medium compression, Medium rebound, 0.4 volume spacer
- Fork: Fox 36 29 Float FIT GRIP EVOL Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Headset: Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
- Stem: Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore
- Handlebar: Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
- Grips: Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
- Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
- Saddle: Fizik Antares R7
- Front brake: Sram G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Rear brake: Sram G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brake lever: Sram G2 RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Rims: DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
- Spokes: DT Hybrid SP, straightpull
- Front hub: DT 370, Boost 15x110mm, IS 6 bolts
- Rear hub: DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts
- Front tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
- Rear tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
- Crankset: E.13 E*Spec Plus ebike, 165mm
- Rings: Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
- Bottom bracket: ---
- Chain: Sram NX Eagle, 12s, Powerlock
- Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Shift levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
- Casette: Sram XG-1230, 11-50T, 12s
- Derailleur hanger: Mondraker M068
- Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4
- Battery: Bosch Powertube 625Wh
- Display: Bosch Kiox
