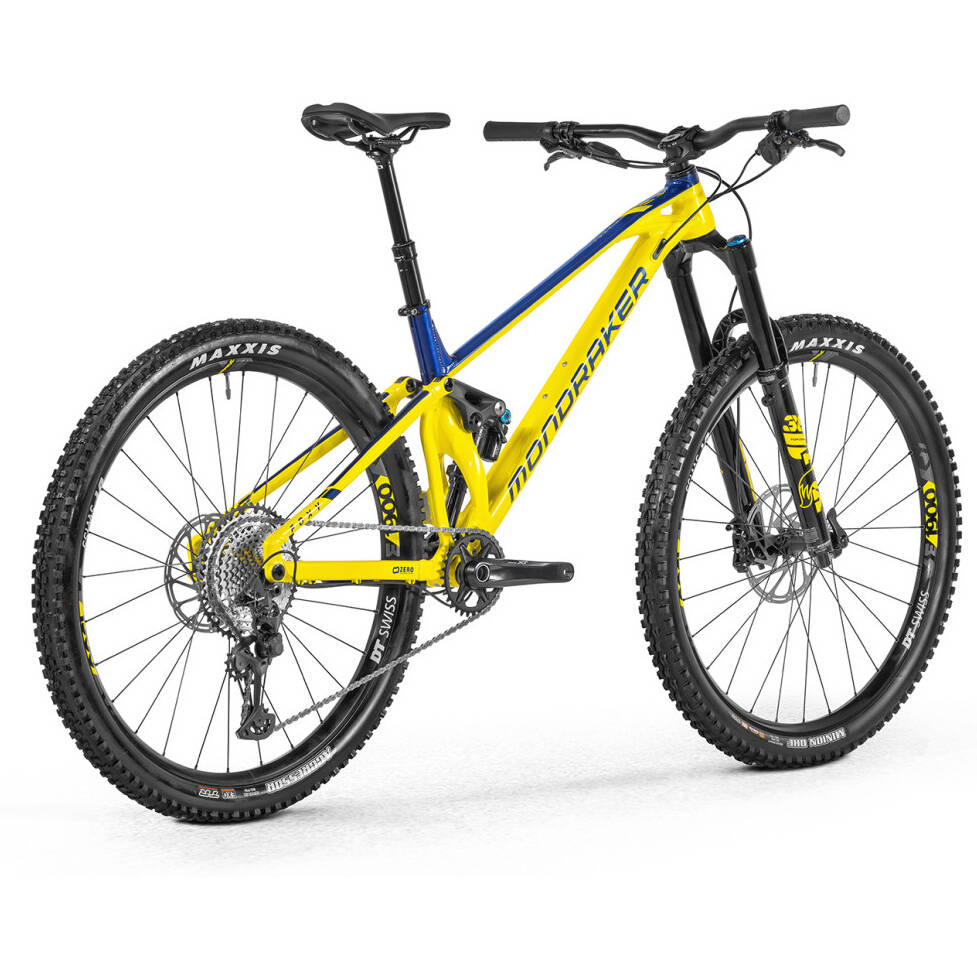

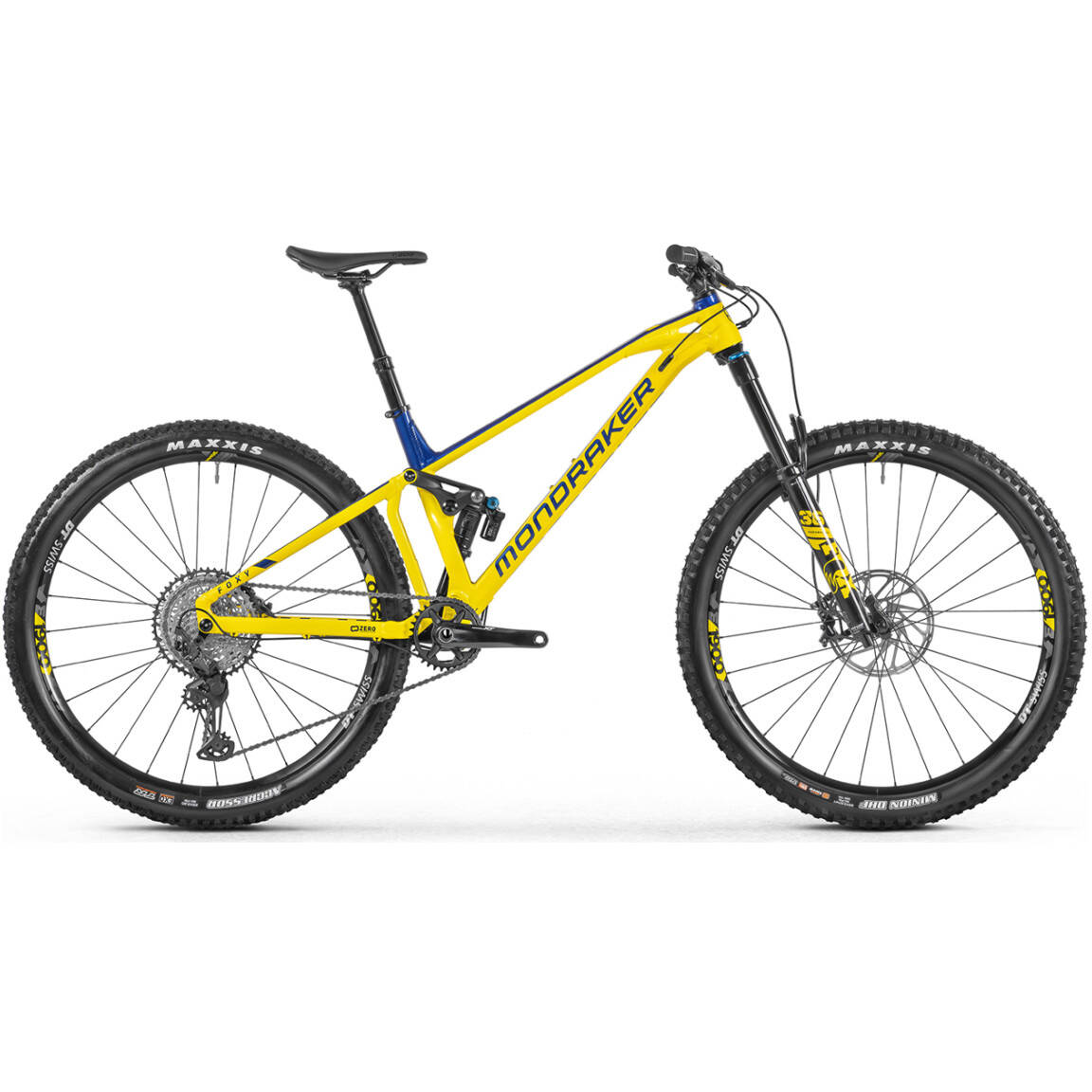

Mondraker Enduro Foxy R 2021 Mountain Bike - Gloss Yellow/Gloss Deep Blue

Bike Size

Mondraker Enduro Foxy R 2021 Mountain Bike

Features:

  • Frame: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
  • Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
  • Rear Shock: Fox Float DPX2 LV EVOL Performance, 205x62.5mm. Settings: compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
  • Shock settings: Light compression, extralight rebound, air volume spacer 0.6
  • Fork: Fox 36 29 Float FIT GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
  • Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
  • Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
  • Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
  • Grips: Onoff Twin, 1lock-on, 135mm
  • Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
  • Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
  • Front brake: Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Rear brake: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Brake lever: Sram G2 RS, SwingLink, tool-free reach adjust
  • Rims: DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
  • Spokes: DT Champion, straightpull
  • Front hub: DT 370, Boost 15x110mm, IS 6 bolts
  • Rear hub: DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts, MS freehub
  • Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
  • Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
  • Crankset: Shimano XT M-8120 Boost, Hollowtech II, Q-factor 178mm, S/M size: 170mm, L/XL size: 175mm
  • Rings: 32T, CNC-machined alloy
  • Bottom bracket: Shimano Deore BB52 BSA, 68/73mm
  • Chain: Shimano Deore M6100, 12s, Quick-link
  • Rear derrailleur: Shimano XT M8100, SGS, Shadow+, 12s
  • Shift levers: Shimano Deore M6100, Rapid Fire Plus, 12s
  • Casette: Shimano SLX M7100, 10-51T Hyperglide+, 12s
  • Derailleur hanger: Mondraker M068




Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
