Mondraker Super Enduro SuperFoxy Carbon R 2021 Mountain Bike - Gloss Yellow/Gloss Deep Blue

Bike Size

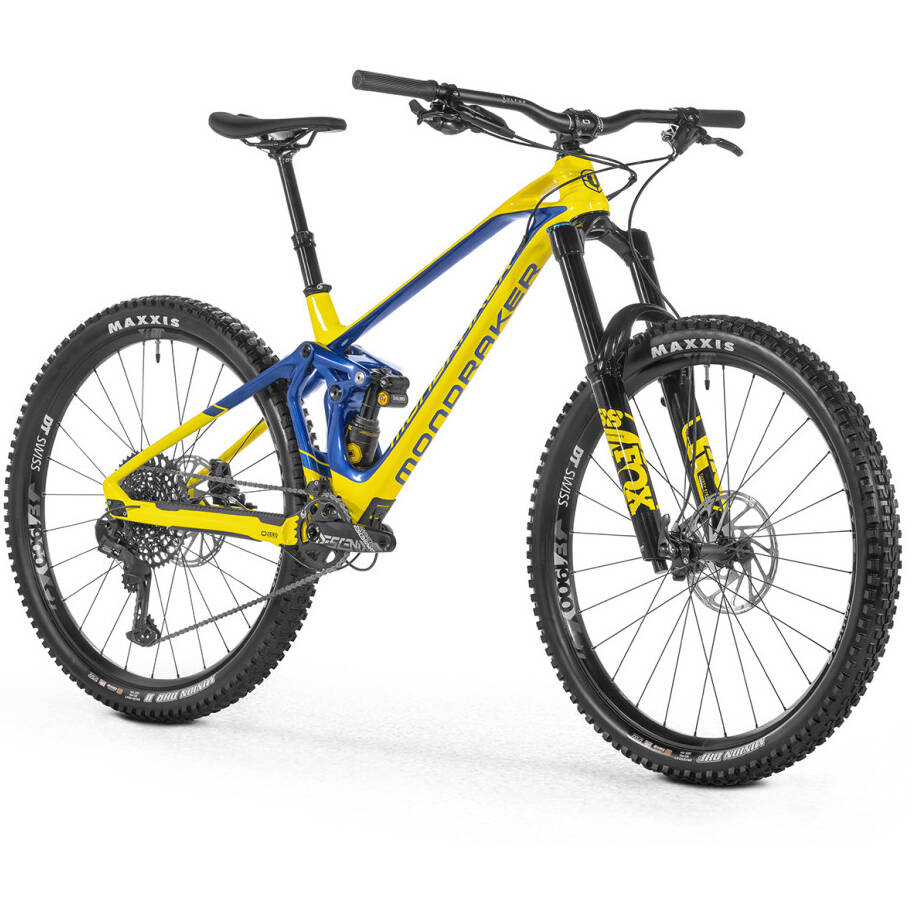

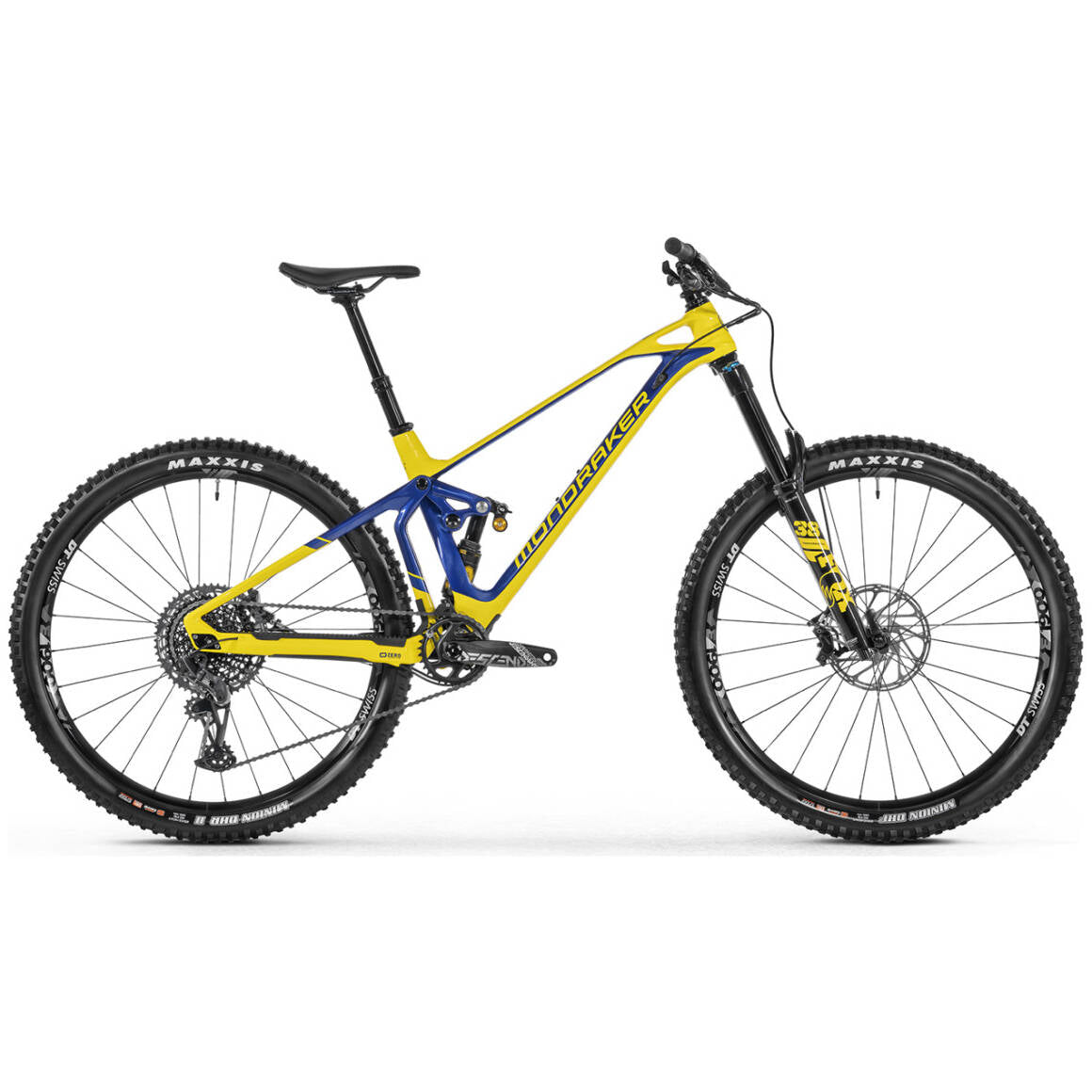

Mondraker Super Enduro SuperFoxy Carbon R 2021 Mountain Bike

Features:

  • Frame: SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included
  • Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
  • Rear shock: Fox Float X2 EVOL Performance, 205x65mm. Settings: Open/Firm, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
  • Shock settings: CO2 compression, R35 Rebound
  • Fork: Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
  • Headset: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
  • Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
  • Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
  • Grips: Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
  • Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
  • Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
  • Front brake: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  • Rear brake: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  • Brake lever: Sram Code R, tool-free reach adjust
  • Rims: DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
  • Spokes: DT Champion, straightpull
  • Front hub: DT 370, Boost 15x110mm, IS 6 bolts
  • Rear hub: DT 370, SuperBoost 12x157mm, 3 Pawl system, IS 6 bolts, XD freehub
  • Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
  • Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
  • Crankset: Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
  • Rings: 32T, CNC-machined alloy, X-SYNC 2
  • Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
  • Chain: Sram NX Eagle, 12s, Powerlock
  • Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
  • Shift levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1
  • Casette: Sram XG-1275, 10-52T, 12s
  • Derailleur hanger: Mondraker M071
  • Weight: 14.9 kg

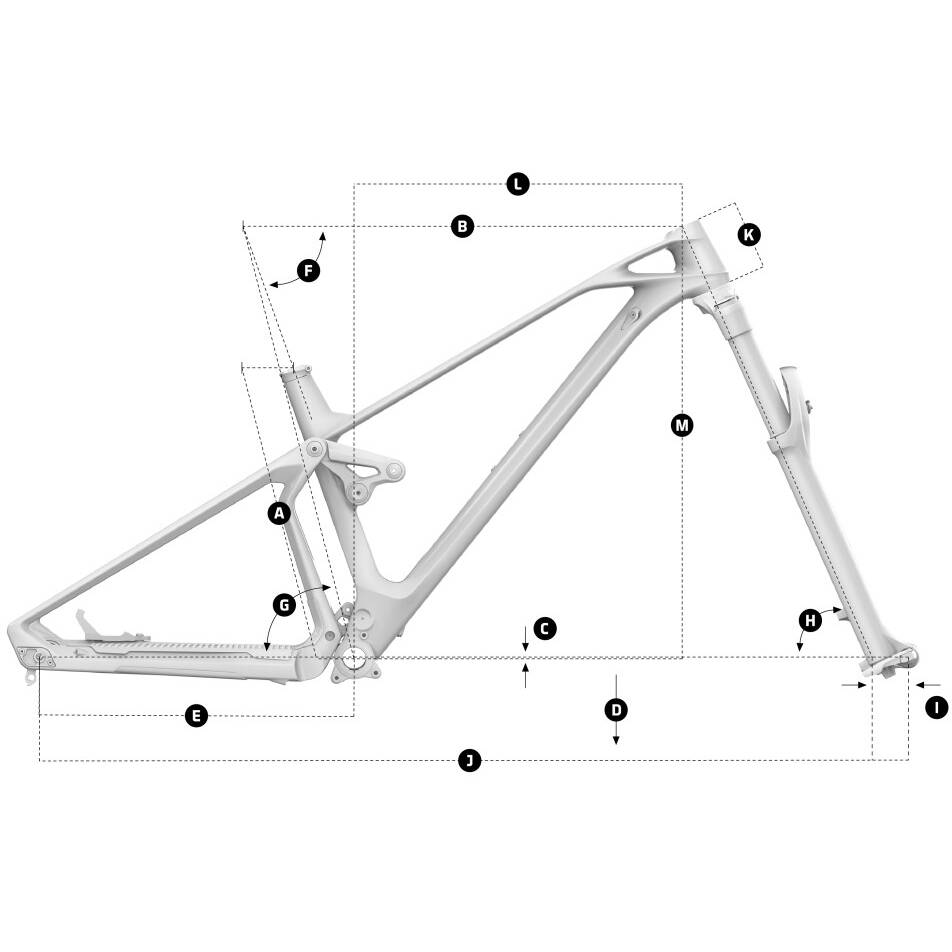

Geometry:
FRAME SIZE                   S            M           L           XL
  • A Seattube length: 380mm / 420mm / 470mm / 510mm
  • B Toptube length: 603mm / 626mm / 651mm / 675mm
  • C Bottom bracket drop: -14mm -14mm -14mm -14mm
  • D Bottom bracket height: 357mm / 357mm / 357mm / 357mm
  • E Chainstay length: 440-450mm / 440-450mm / 440-450mm / 440-450mm
  • F Seat tube angle: 70.5° / 70.5° / 70.5° / 70.5°
  • G Effective seattube angle: 75.5° / 75.5° / 75.5° / 75.5°
  • H Headtube angle: 65° / 65° / 65° / 65°
  • I Fork Offset: 44mm / 44mm / 44mm / 44mm
  • J Wheelbase: 1197mm / 1220mm / 1246mm / 1272mm
  • K Headtube length: 90mm / 100mm / 115mm / 130mm
  • L Reach: 450mm / 470mm / 490mm / 510mm
  • M Stack: 605mm / 614mm / 628mm / 642mm

Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
