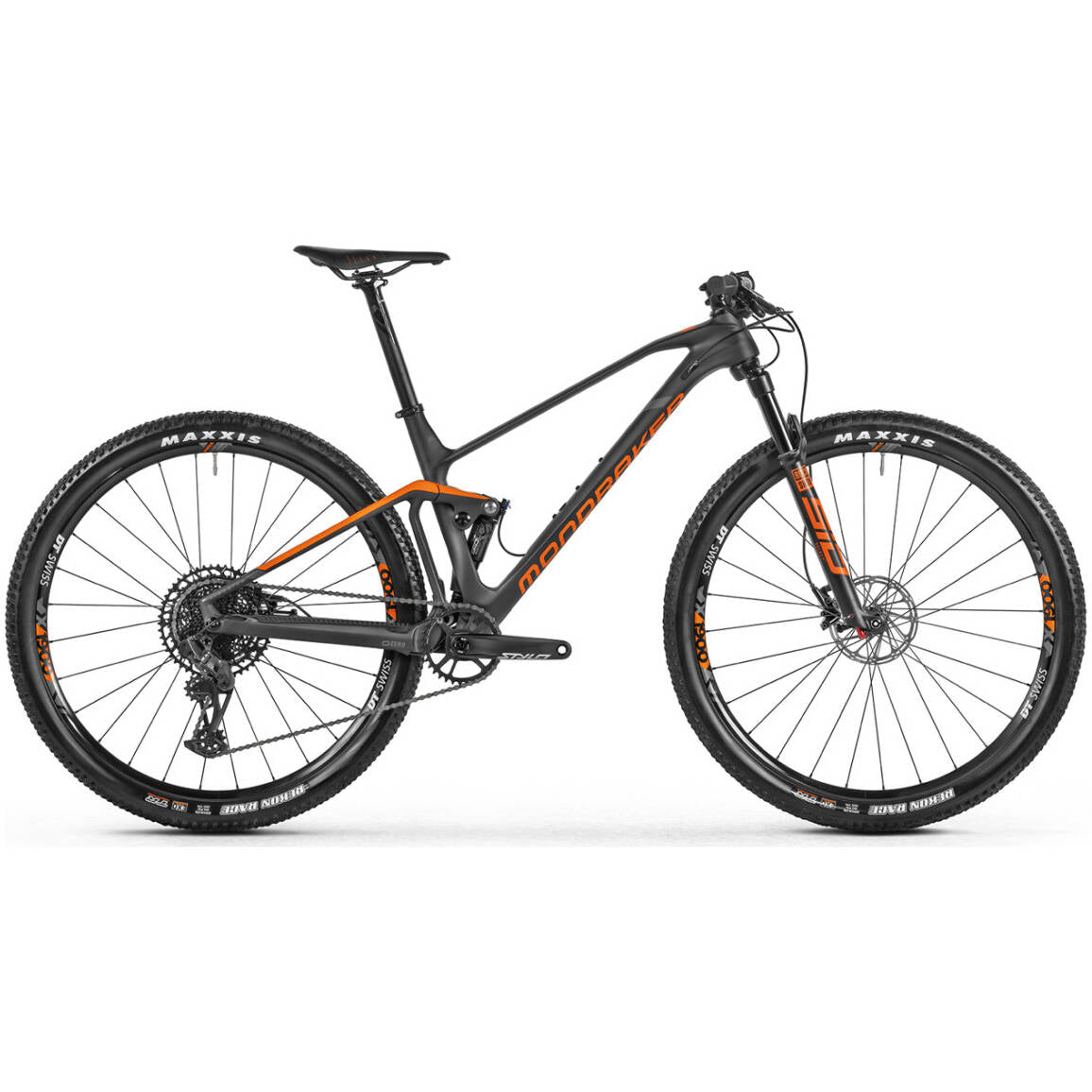

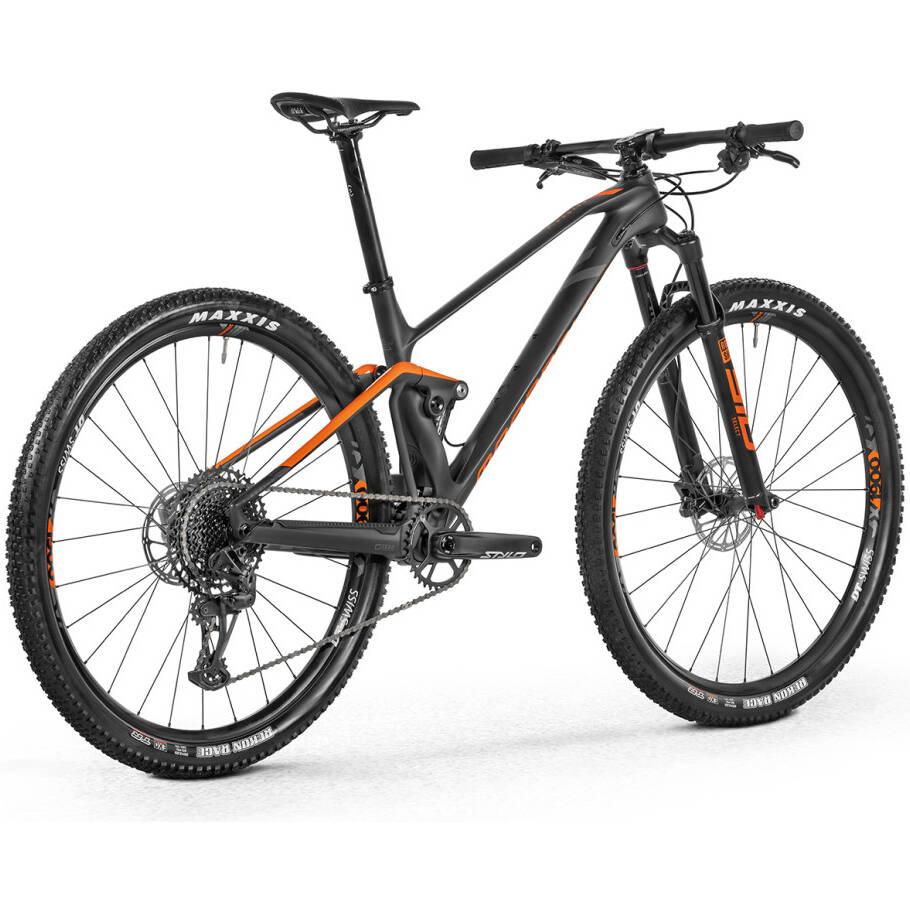

Mondraker XC Race F-Podium Carbon 2021 Mountain Bike - Matte Carbon UD/Gloss Orange/Nimbus Grey

Mondraker XC Race F-Podium Carbon 2021 Mountain Bike

Features:

• Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock: Rockshox SID Select+ RLR Debonair, 185x47.5mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock settings: Light compression, medium rebound, Lockout 430, 1 Token
• Fork: Rockshox SID SL Select RL 29, 100mm, Charger, Debonair, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
• Headset: Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
• Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
• Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips: Onoff Twin, 1lock-on, 135mm
• Seatpost: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
• Saddle: Fizik Antares R7
• Front brake: Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
• Rims: DT Swiss X1900 Spline 29, 25mm internal width, sleeved aluminum, tubeless ready, 28 spokes
• Spokes: DT Champion, straightpull
• Front hub: DT 370, Boost 15x110mm, IS 6 bolts
• Rear hub: DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts, MS freehub
• Front tire: Maxxis Rekon Race 29x2.25, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tire: Maxxis Rekon Race 29x2.25, EXO protection, tubeless ready, 120TPI, folding bead
• Crankset: Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings: 34T, steel, X-Sync 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
• Casette: Sram PG-1230, 11-50T, 12s
• Derailleur hanger: Sram UDH
• Weight: 10.9 kg

Geometry:

• A Seattube length           390 mm       420 mm       470 mm         510 mm
• B Toptube length            580 mm       600mm        625 mm         650 mm
• C BB drop                       -40              -40             -40                -40
• D Bottom bracket height  325 mm       325 mm       325 mm         325 mm
• E Chainstay length          432 mm       432 mm       432 mm         432 mm
• F Seat tube angle             72°              72°             72°               72°
• G Seattube angle             76.5°            76.5°          76.5°            76.5°
• H Headtube angle            68°               68°             68°               68°
• I Fork Offset                    44 mm          44 mm         44 mm          44 mm
• J Wheelbase                1132 mm        1153 mm     1177 mm       1203 mm
• K Headtube length           85 mm            90 mm      100 mm         115 mm
• L Reach                         440 mm          460 mm      480 mm         500 mm
• M Stack                         570 mm         575 mm      584 mm         598 mm
