Features
- Frame: Available In Standard & Xl Sizes, 100% Cr-Mo Tubing, Looptail Rear End, 73mm Euro Bottom Bracket, 148mm Spaced Fixed Dropouts, Internal Cable Routing For Dropper Post, Disc Brake Tabs, Vertical Dropouts, Removable Derailleur Hanger

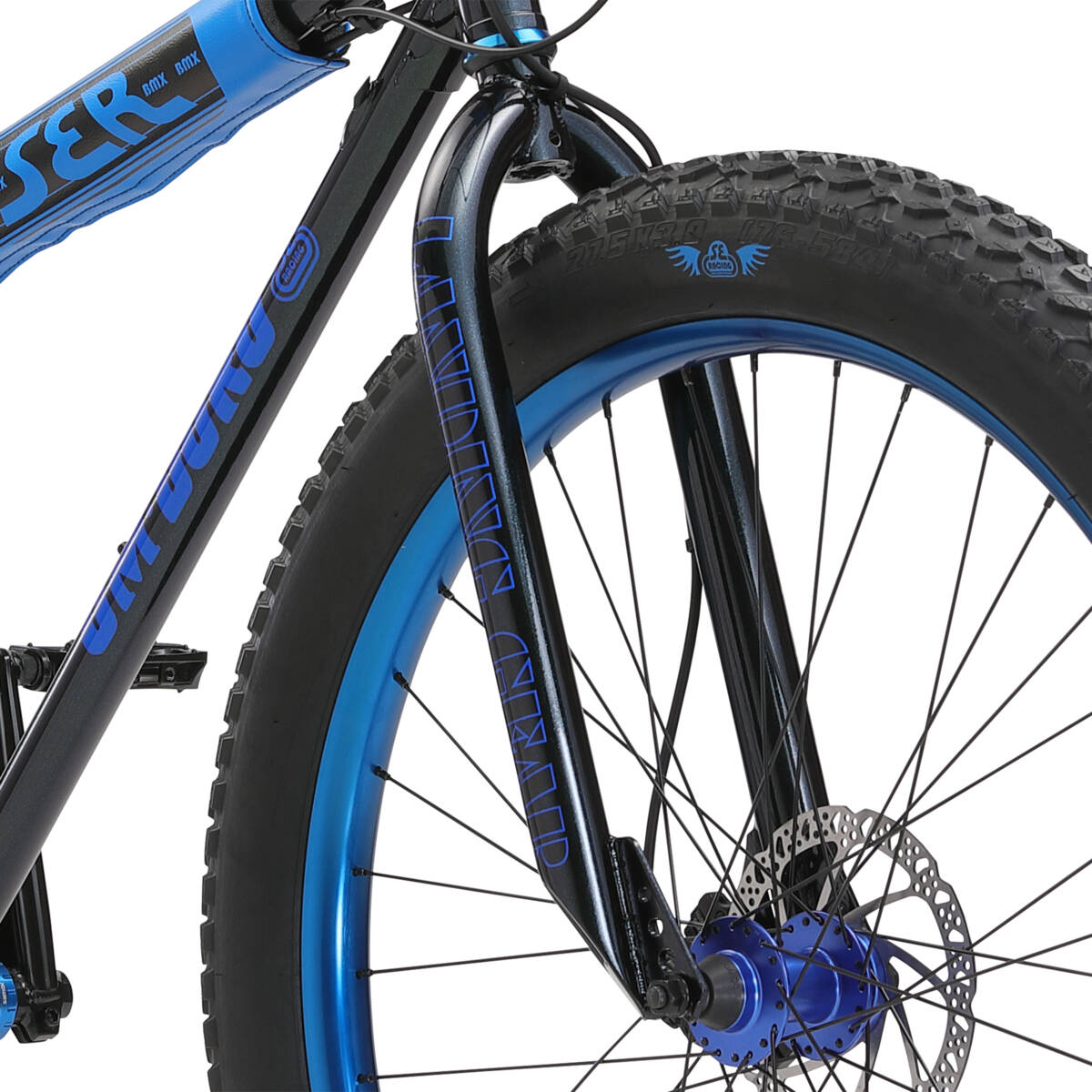

- Fork: Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle To Crown, 38mm Offset, 110mm Spaced Dropouts

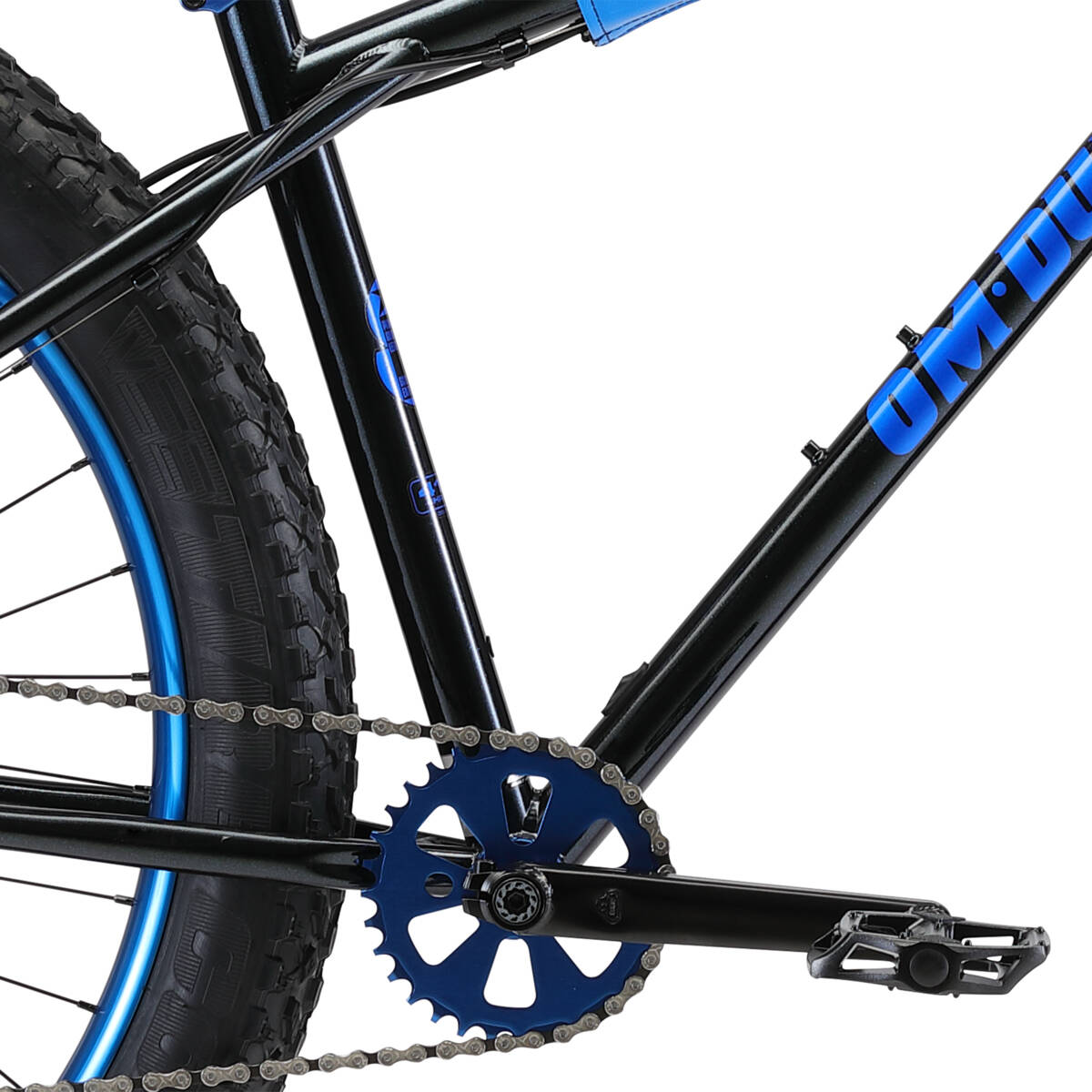

- Crankset: Se V-Ridge 3-Pc Cr-Mo, Cranks, 175mm, External Sealed Bearing Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 32t Cnc Alloy Narrow/Wide Sprocket
- Pedals: X-Pedo Low-Profile Platform W/ Removable Pins
- Rear Derailleur: Sram Gx 1x10, Short Cage
- Shifters: Sram Gx 1x10, Trigger Shifter, Exact Actuation, Alloy Lever
- Cassette: Shimano Deore Cs-Hg50, 10-Speed, 11-36t
- Chain: Kmc X10el
- Wheelset: Alloy 36h Nutted Hubs, Sealed Rear, 110mm Front Hub & 148mm Rear Hub, W/ 42mm Double-Wall Disc Rims, 11-36t 10-Speed Cassette, Stainless Spokes
- Tires: Vee Tire Co X Se Racing T-Fatty, 27.5" X 3.0" Front & Rear
- Brakeset: Avid Bb5, Mechanical Disc, Easy To Adjust W/ Tri-Align Caliper Positioning System, 160mm Rotor, Front & Rear
- Brake Levers: Tektro Mt2.1, 2-Finger Alloy Front & Rear
- Headset: Tange 1-1/8" Threadless

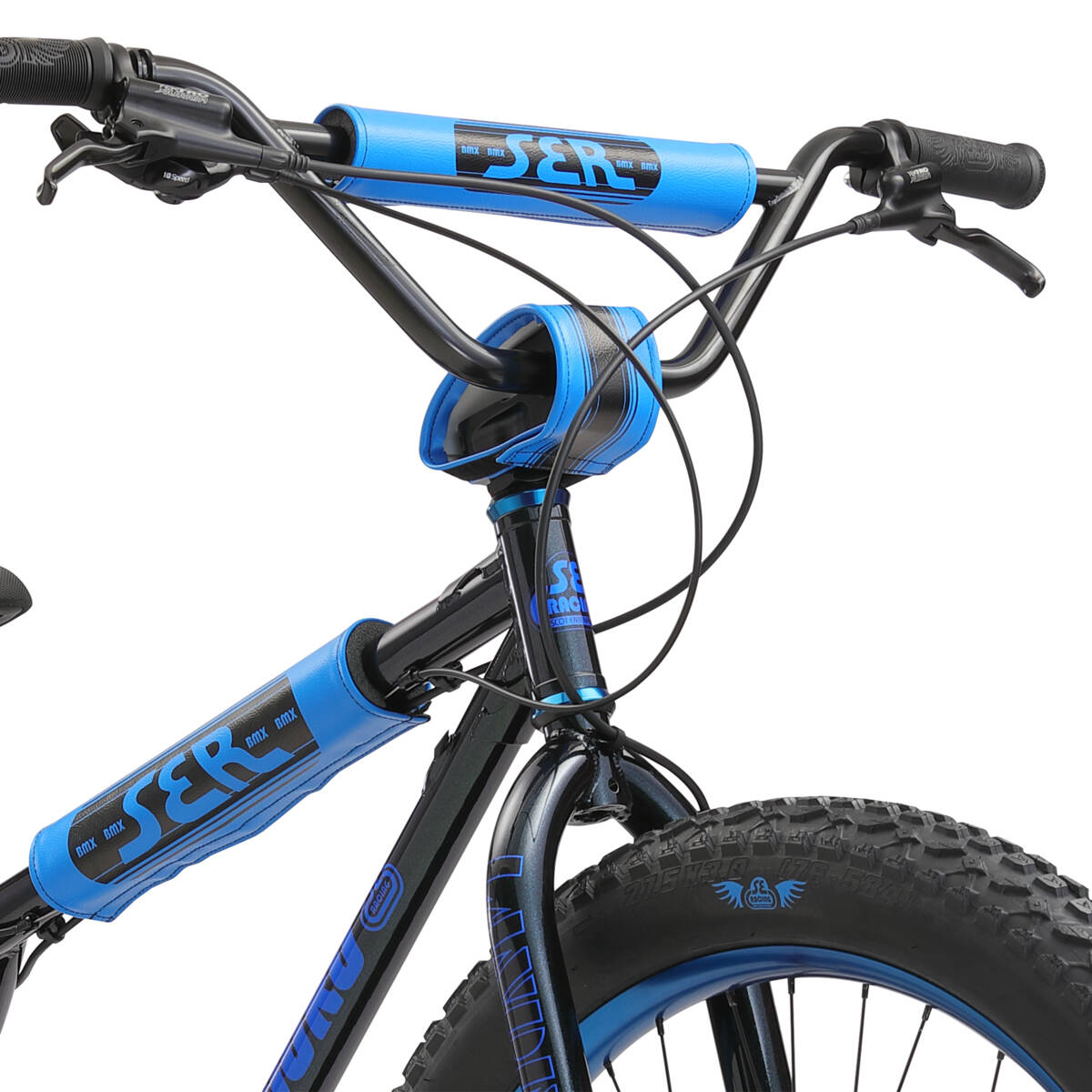

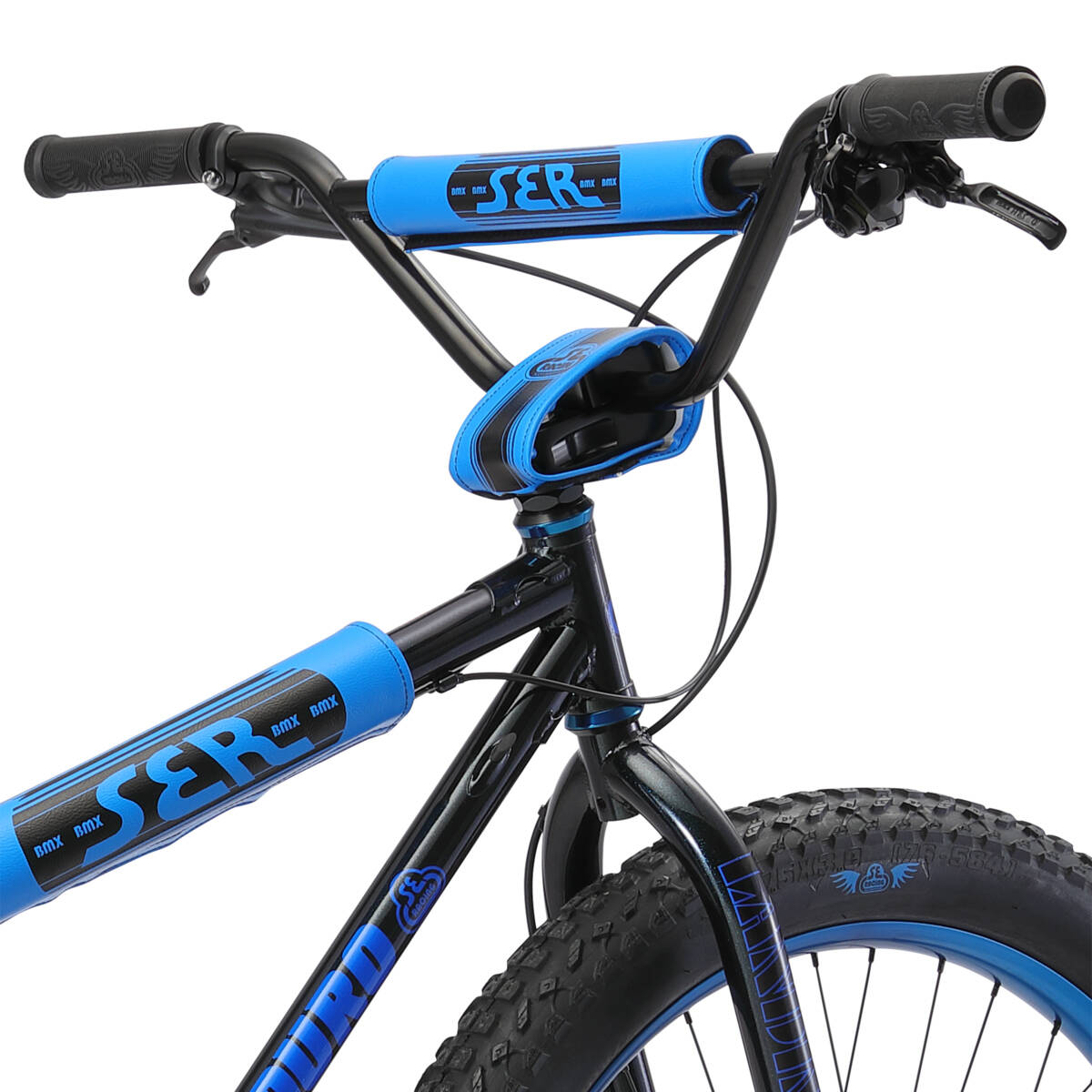

- Handlebar: Big Honkin' Cr-Mo Cruiser Bar, 31" X 6", 10° Backsweep, 1° Upsweep
- Stem: Retro Alloy Top-Load W/ Engraved Se Logo & Lightweight Cutouts, 55mm Reach
- Grips: Se Racing Flangeless Mushroom Wing Grips W/ Se Rubber End Plugs
- Seat: Se Flyer Seat W/ Custom Se Bottle Opener Brace
- Seatpost: Micro-Adjust Alloy, 30.9mm
- Seat Clamp: Alloy, 34.9mm Inner Diameter
- Accessories: Vintage Vinyl Ser Padset, Alloy Valve Caps, Water Bottle Mounts
- Weight: 38.1 Lbs / 17.28 Kgs
Geometry
- Top Tube, Actual: 23.2"
- Top Tube, Effective: 24.2"
- Seat Tube, Center To Top: 17.5"
- Seat Tube Angle: 73°
- Head Tube Angle: 71°
- Chainstay Length: 17.5"
- Wheelbase: 43.3"
- Bottom Bracket Height: 12.4"
- Standover: 31.7"
- Suggested Rider Size: 5'5"+ (165cm+)
- Stem: 55mm
- Handlebar Width: 31"
- Crank: 175mm
- Wheel Size: 27.5"
- Seat Post Diameter: 30.9mm

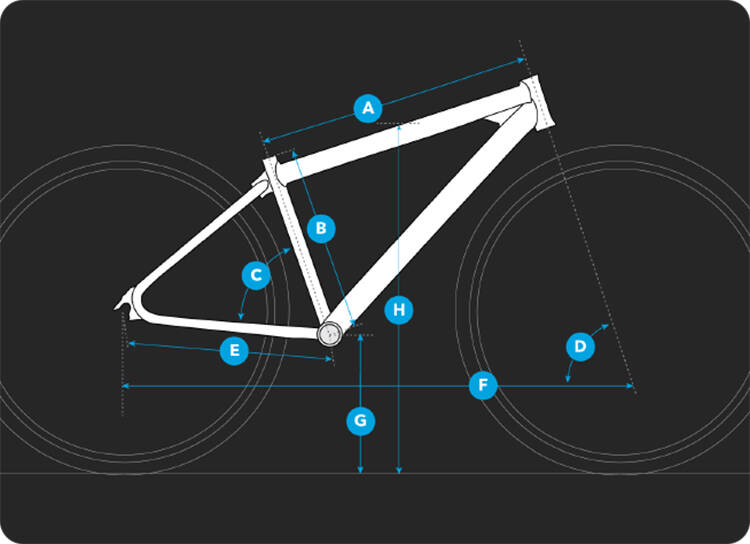

Note: See Images For Detailed Size Guide
Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
