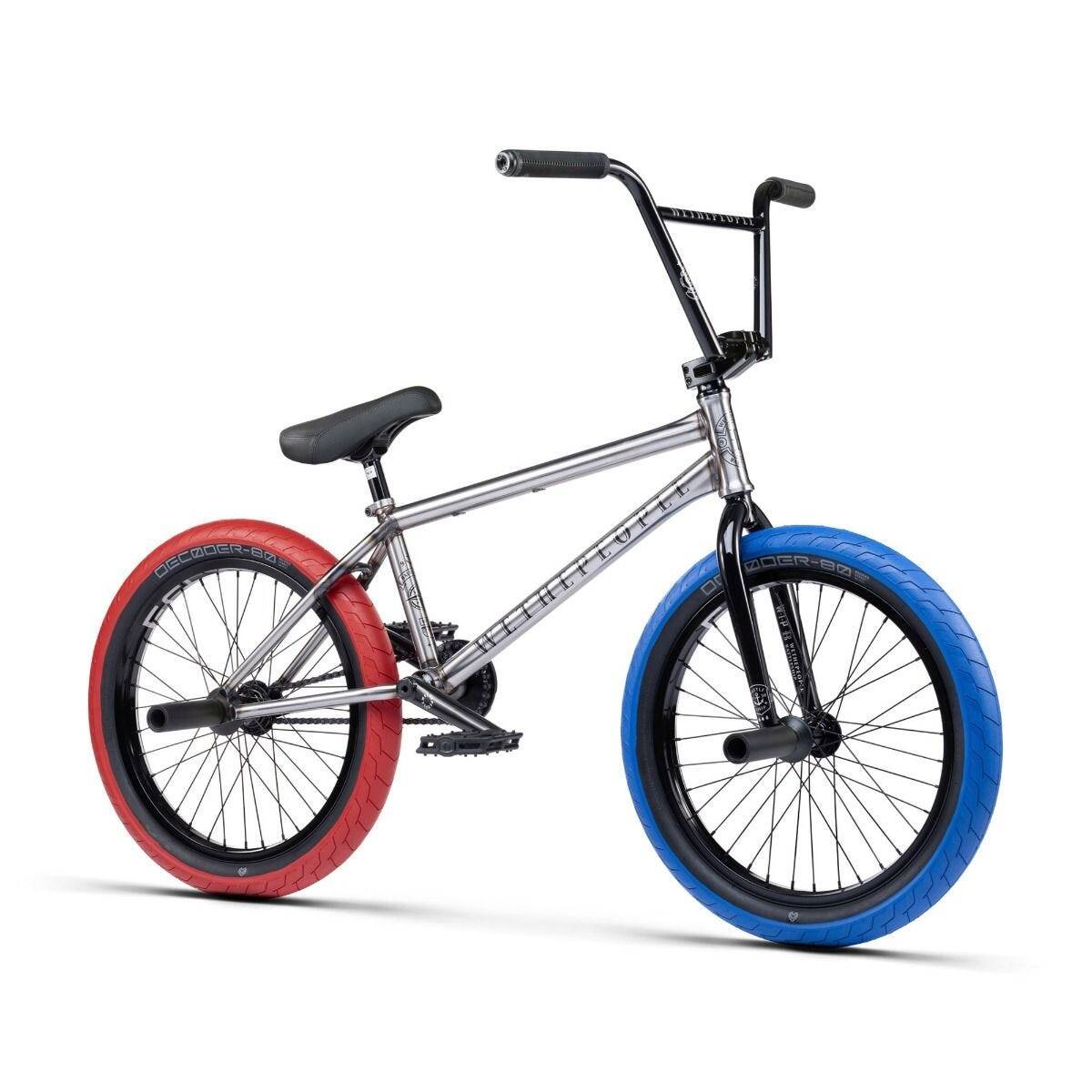

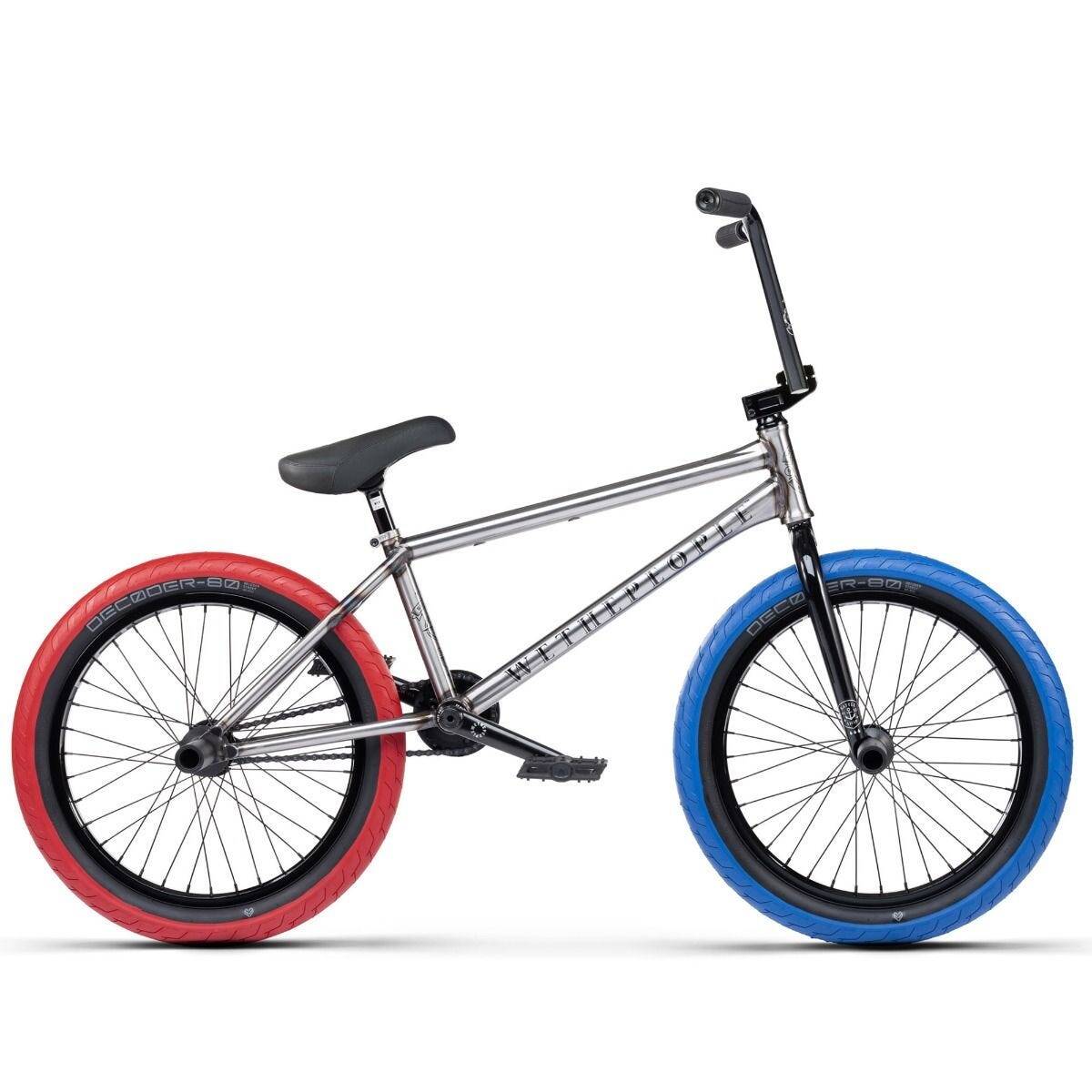

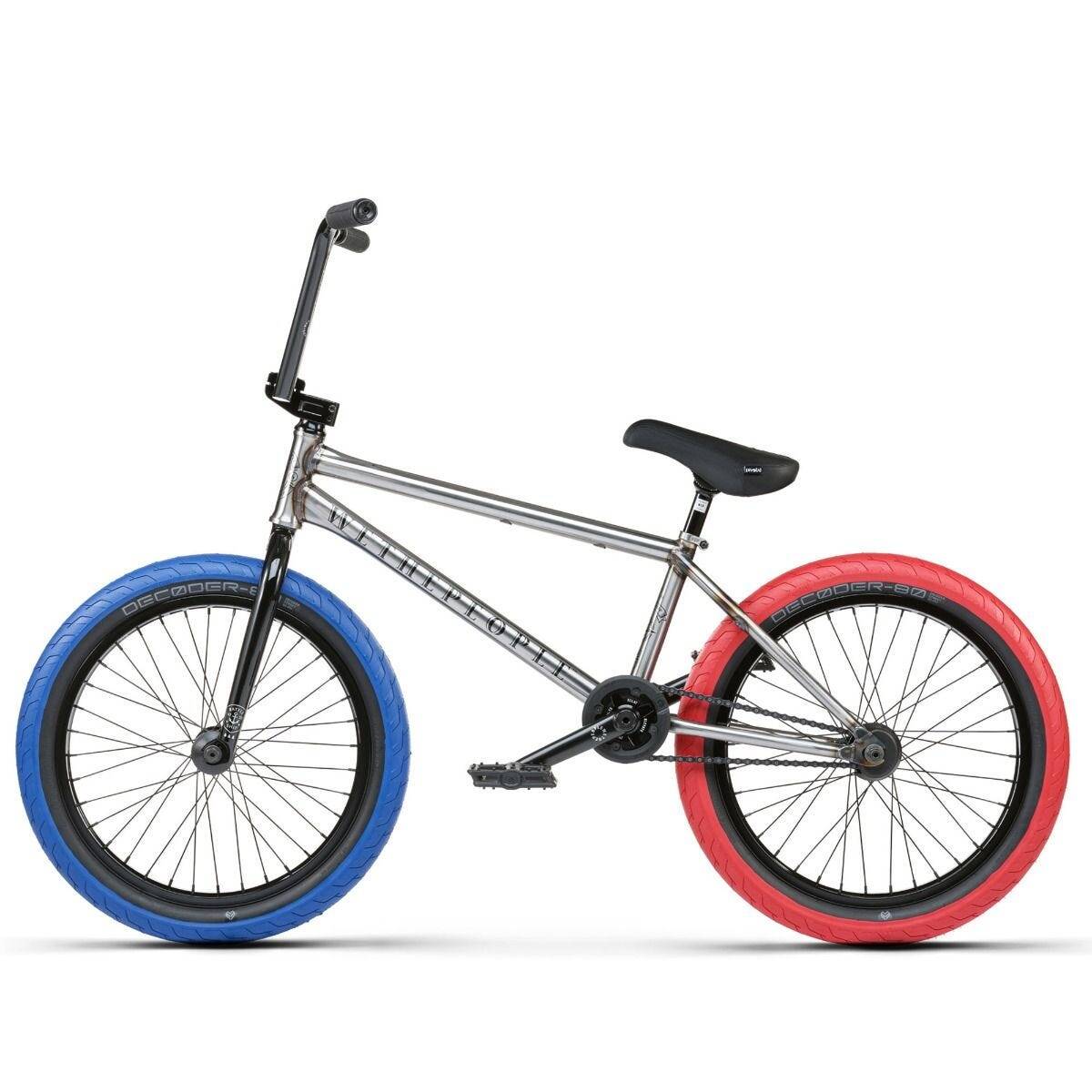

WeThePeople Battleship LSD FC 20.75'' Complete BMX - Glossy Raw

WeThePeople Battleship LSD FC 20.75'' Complete BMX



Features:

  • Full Size 20" Complete BMX
  • Frame: WETHEPEOPLE "BATTLESHIP" frame, 4130 full cromo, hydro-formed gussets, with removable brake pivots & guides
  • Fork: WETHEPEOPLE "BATTLESHIP" fork, post liquid heat-treated butted sanko tubing, 1pc cnc steerer, 15mm offset
  • Bars: ÉCLAT "STRANGLER" bar, 4pc, post liquid heat-treated 4130 cromo, 25.4mm clamping
  • Grips: ÉCLAT "SHOGUN" grips, flangeless, with ÉCLAT "TECH-BOLT" barends
  • Stem: ÉCLAT "DOMAIN" topload stem, cnc alloy, 48mm reach, 25.4mm clamping
  • Headset: ÉCLAT "WAVE 16" int. headset, sealed bearing
  • Gyro: -
  • Lever: SALT "MOTO" brake lever, alloy
  • Brakes: ECLAT “TALON” alloy u-brake rear
  • Cranks: WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, cromo, 160mm, 48 spline
  • BB: WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
  • Pedals: ÉCLAT "CENTRIC" pedals, nylon/fiberglass
  • Chain: SALTPLUS "WARLOCK" half-link chain
  • Sprocket: ÉCLAT "ELEVATE" sprocket & nylon guard, 6061-T6 alloy, 25t
  • Driver: 1pc freecoaster driver, 9t, sealed bearing
  • Front Hub: WETHEPEOPLE "HELIX" hub, fully sealed, 3/8"s female bolts, 36h
  • Rear Hub: WETHEPEOPLE "HELIX" freecoaster hub, fully sealed, 9t, 14mm axle, 36h
  • Hub Guards: WETHEPEOPLE "HELIX" hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
  • Front Rim: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
  • Rear Rim: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
  • Seat: ÉCLAT "BIOS" pivotal seat, fat padded
  • Seat Post: WETHEPEOPLE "TEAM" pivotal seat post, 200mm, 6061-T6 alloy,
  • Seat Clamp: WETHEPEOPLE "LOGIC" seat clamp, 4130 cromo
  • Tyres: ÉCLAT "DECODER" Tyres, 2.40", 100PSI, front & rear
  • Pegs: ÉCLAT "VENOM" pegs, nylon/fiberglass, 4.8" long, x2
  • Weight: 12.67kg / 27.94lbs
Sizes & Geometry:
  • Top Tube Length: 20.75"
  • Chain Stay Length: 13" (12.7"-13.2")
  • Head Tube Angle: 75.5°
  • Seat Tube Angle: 71°
  • Bottom Bracket Height: 11.7"
  • Stand Over Height: 9"
  • Bar Rise: 9.1"
  • Bar Width: 29.7"
  • Bar Back Sweep: 11.5°
  • Bar Upsweep: 2.5°
BATTLESHIP is a name synonymous with new-school street riding and ultimate strength and durability. Taking one of the most popular technical street frames on the market and adding a full aftermarket PRO parts package, the Battleship is the greatest street bike ever made. Now featuring the brand new 15mm offset Battleship fork and a full ECLAT/WETHEPEOPLE parts package, this is a bike which, any of our team could ride straight out of the box with zero compromise.

A full custom bike in every sense of the word, the Battleship carries a full Lifetime Manufacturer Guarantee on the frame and fork giving you full confidence that you are riding a bike designed to ride at the highest level possible.

Important Note: Our bikes require some assembly on delivery. See our Warranty Page for more details.
